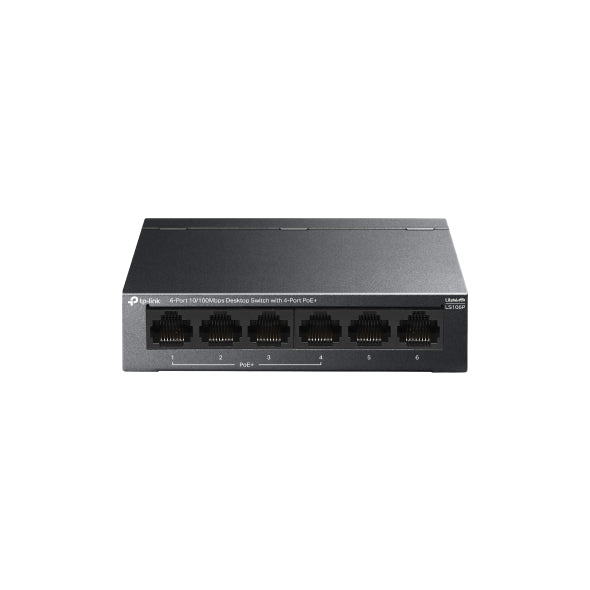

TP-Link LS106P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
TP-Link LS106P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with atleast 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /04/2026
Couldn't load pickup availability
The LS106P is an 6-Port 10/100Mbps Desktop Switch with 4 ports supporting the PoE+ standard. It offers a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. It provides a total power budget of 65 W*, with up to 30 W per port. It supports up to 250 m (820ft) data and power transmitting range under Extend Mode**. Featured with Isolation Mode & PoE Auto Recovery, LS106P is ideal for surveillance scenario.
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
|---|---|
| Interface | • 6*10/100 Mbps RJ45 Ports with 4 PoE+ Ports (Port 1 to Port 4) • AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX: UTP category 5 or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Power Input | 220~240V, 50/60Hz (NV) |
| LED | Power, Link/Act, PoE Status |
| Packet Forwarding Rate | 0.893 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 Power Supply: 65 W |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (99.8×98×25 mm) |
| Max. Power Consumption | 66.53 W |
| Max. Heat Dissipation | 226.19 BTU/h |
Description
Description
The LS106P is an 6-Port 10/100Mbps Desktop Switch with 4 ports supporting the PoE+ standard. It offers a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. It provides a total power budget of 65 W*, with up to 30 W per port. It supports up to 250 m (820ft) data and power transmitting range under Extend Mode**. Featured with Isolation Mode & PoE Auto Recovery, LS106P is ideal for surveillance scenario.
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
|---|---|
| Interface | • 6*10/100 Mbps RJ45 Ports with 4 PoE+ Ports (Port 1 to Port 4) • AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX: UTP category 5 or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Power Input | 220~240V, 50/60Hz (NV) |
| LED | Power, Link/Act, PoE Status |
| Packet Forwarding Rate | 0.893 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 Power Supply: 65 W |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (99.8×98×25 mm) |
| Max. Power Consumption | 66.53 W |
| Max. Heat Dissipation | 226.19 BTU/h |
